1set EPC13 5+5pins Ferrite Cores bobbin, transformer core, inductor coil
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
Al: 850±25%

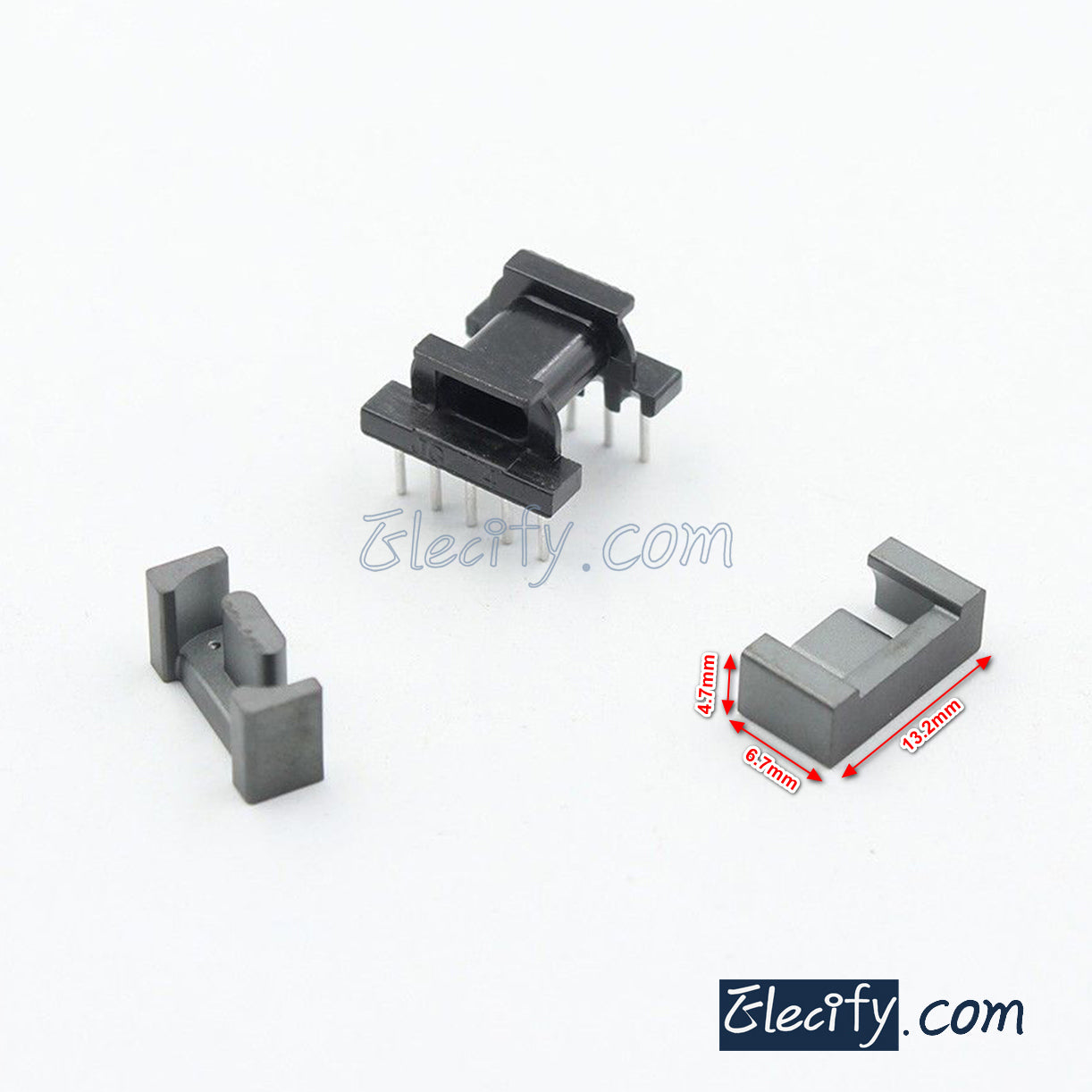

Bobbin size: please check the 3rd picture core size(mm): (the 2nd picture)
A: 13.3±0.2
B: 6.6±0.2
C: 4.7±0.2
D: 5.5±0.2
E: 10.2min
F: 4.6±0.2
A: 13.3±0.2
B: 6.6±0.2
C: 4.7±0.2
D: 5.5±0.2
E: 10.2min
F: 4.6±0.2
G: 2.0±0.2
H: 8.30min
Le: 29.85mm
Ae: 12.06mm^2
Ve: 361mm^3
Bs: 510mT (25℃), 390mT (100℃
Br: 100mT (25℃)Coercivity (Hc) : 14A/m (25℃)
Curie Temp. (Tc): 220℃
Electrical resistivity : 6.5Ω/m
each set =2 ferrite halves + 1 bobbin
