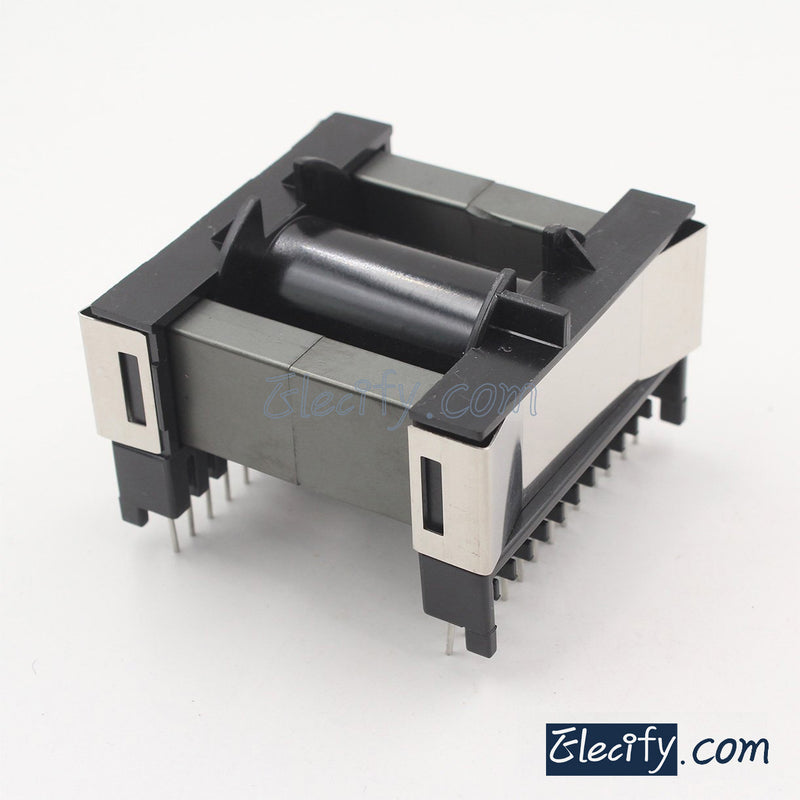

1set ETD59 13+13pins PC40 Ferrite Cores and bobbin, transformer core 60mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
ETD59 13+13pins Ferrite Cores
AL=6500±25%

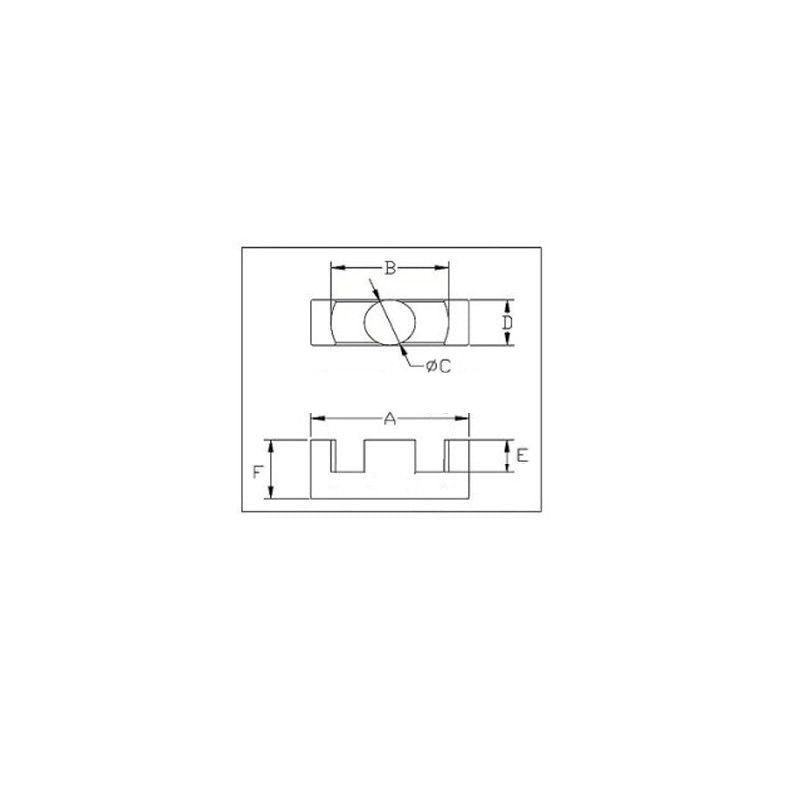

core size(mm): (the 2nd picture)
A:59.8±1.20
B:43.60min
C:21.70±0.40
D:21.70±0.40
E:22.40±0.50
F:31.00±0.50
C1 :0.39
Le :144
Ae:368.0
Ve:54400
Ve:23200.0
