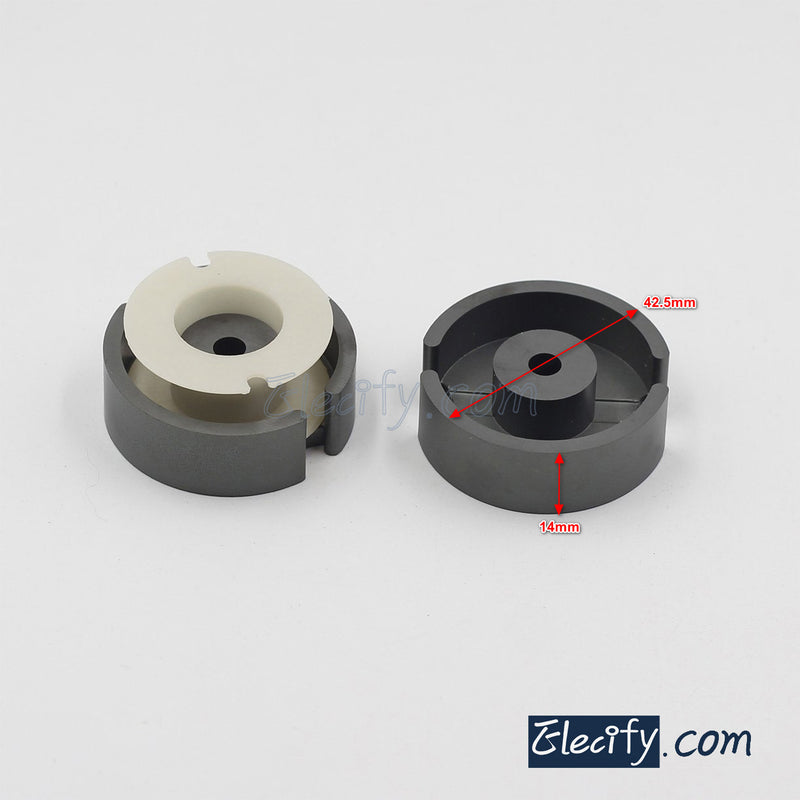

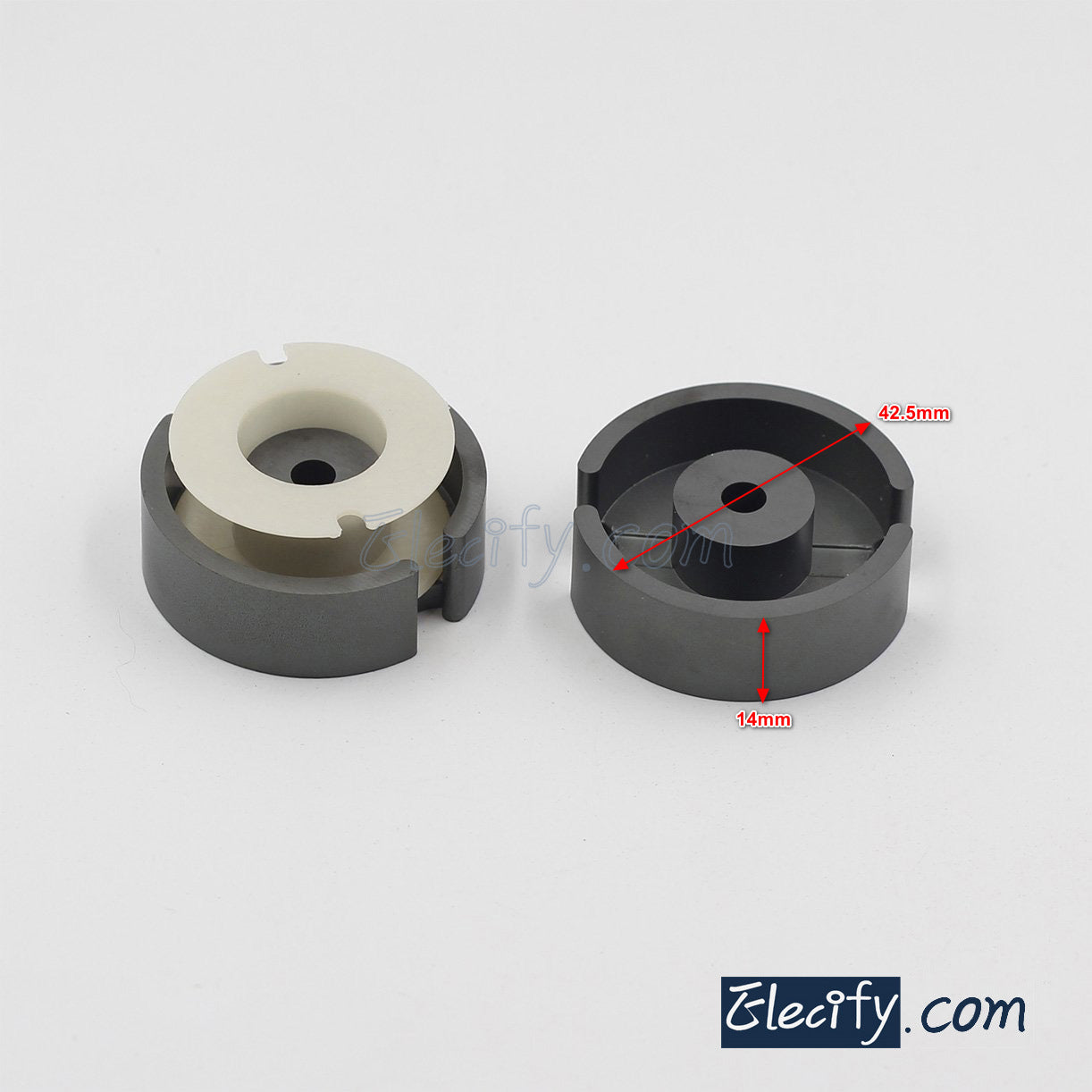

1set GU42 POT Ferrite Cores, transformer core, magnetic tank 42.5mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
GU42 Ferrite Cores
AL=7800±25%(nH/N^2)
"E" core size(mm): (the third picture)
A: 42.5±0.9
B: 36.1±0.7
C: 17.3±0.4
D: 5.5±0.2
E: 9.0±0.3
F: 14±0.3
G: 5.0±0.3
"E" core size(mm): (the third picture)
A: 42.5±0.9
B: 36.1±0.7
C: 17.3±0.4
D: 5.5±0.2
E: 9.0±0.3
F: 14±0.3
G: 5.0±0.3
each set =2 ferrite halves + 1 bobbin
