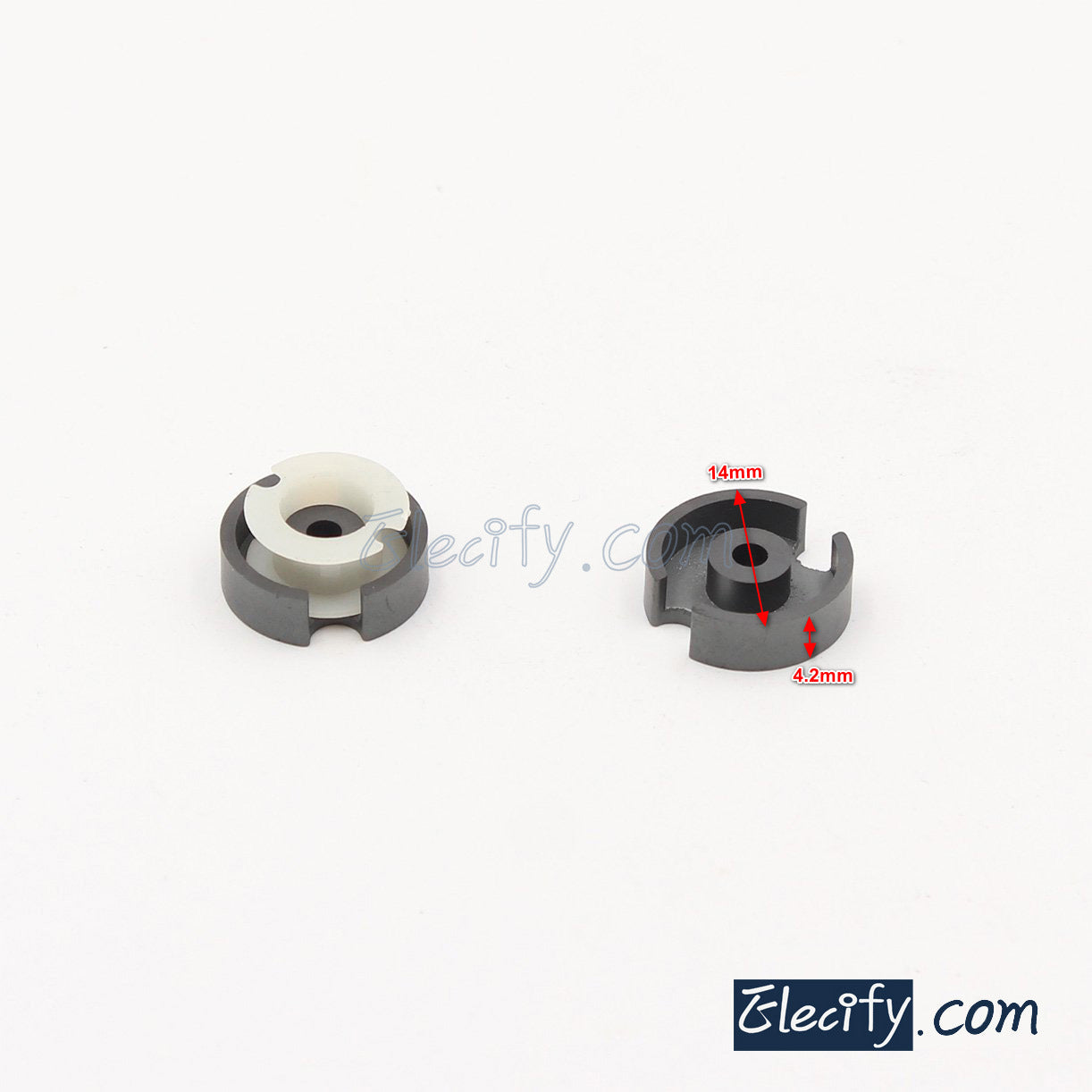

1set GU14 POT Ferrite Cores, transformer core,magnetic tank 14mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
GU14 Ferrite Cores
AL=2000±25%(nH/N2)
"E" core size(mm): (the 3rd picture)
A: 14.0±0.3
B: 11.8±0.2
C: 6.0±0.2
D: 3.0±0.1
E: 2.9±0.1
F: 4.2±0.1
G: 3.3±0.6
C1: 0.89
Le: 19.85
Ae: 22.27
Ve: 443.2
Le: 19.85
Ae: 22.27
Ve: 443.2
1set =2 ferrite halves + 1 bobbin
