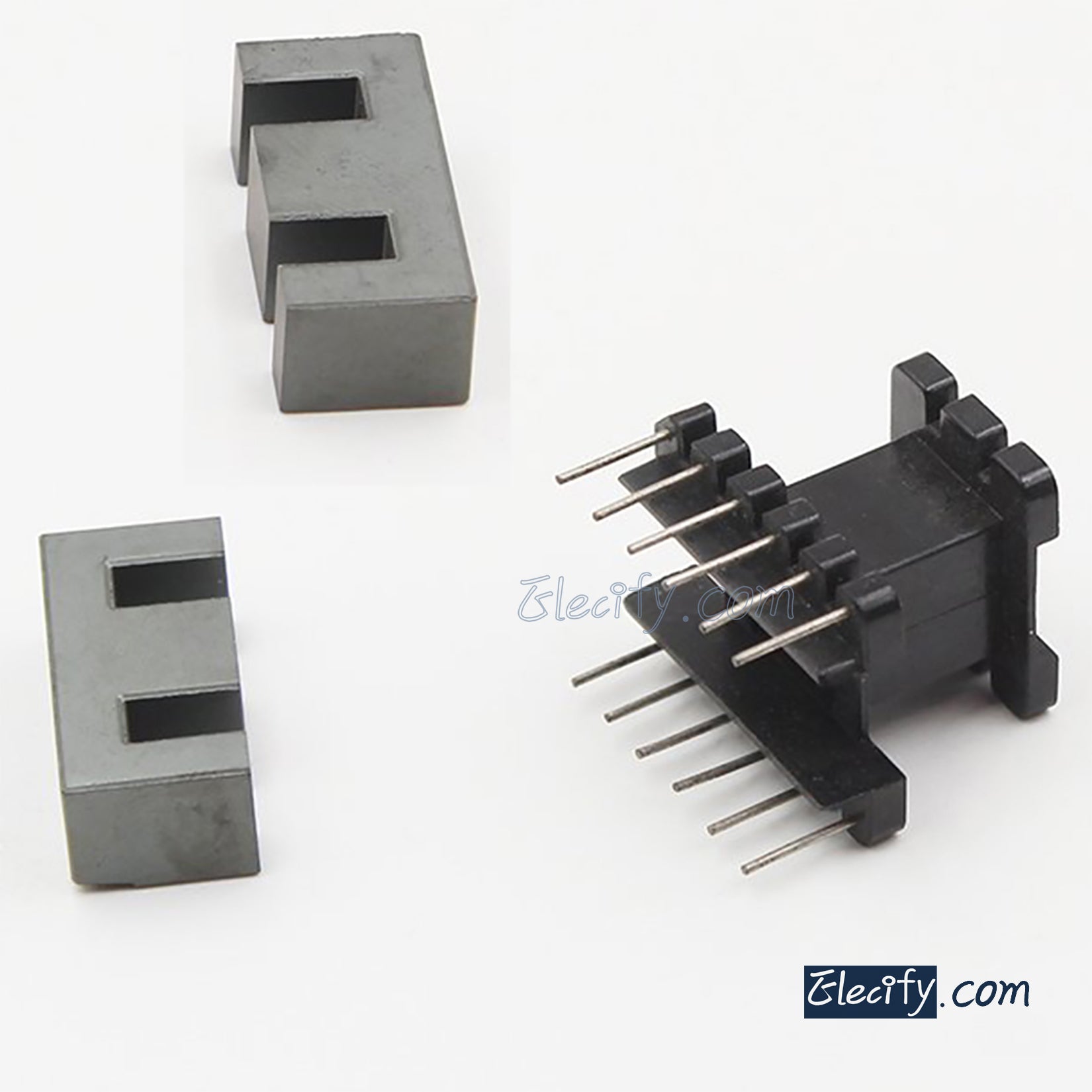

2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm
2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm

2set EE30 PC40 Ferrite Cores and bobbin 5+5 6+6 30.5mm

Shipping calculated at checkout.

We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

Material type: PC40 (TDK) = 3C90 (Ferroxcube) = N67 / N87 (EPCOS)

2set PC40 EE30 Ferrite Cores

  C1: 0.53mm^-1
  Le: 57.8mm
  Ae: 110mm^2
  Ve: 6350mm^3

AL=4000 ± 25%

Bobbin (Option): 5+5, 6+6

2set =4 ferrite halves + 2 bobbin
